- Enhance Reception: These 2.4GHz and 5GHz short WiFi antennas will assist network devices get a stronger and more stable connection without signal dropouts
- Compatibility: PCI and PCIe network cards, PC desktop computer gaming motherboards, external WiFi USB adapters, wireless network routers, WLAN AP & Hotspot wireless range extenders, wireless WiFi modules, and Bluetooth modules

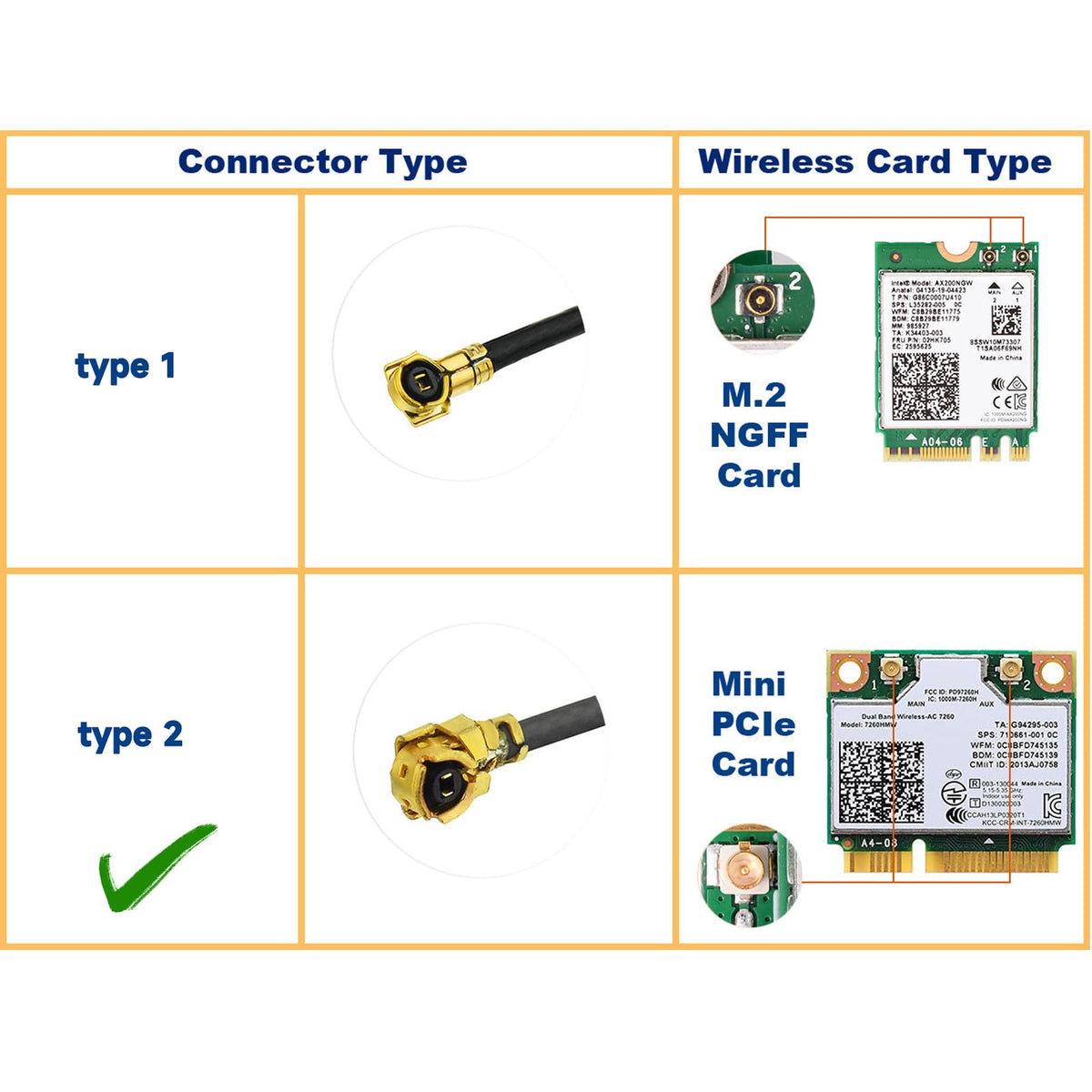

- Application: This kit is compatible with Mini PCIe network devices like wireless- AC 7260 card, and do NOT use for M.2 NGFF card
- Space-saving Design: The antennas are short, measuring only 1.9 inches when rotated by 90 degrees. Without a base, you can simply screw them into the device's port, eliminating the need for additional floor or PC top space

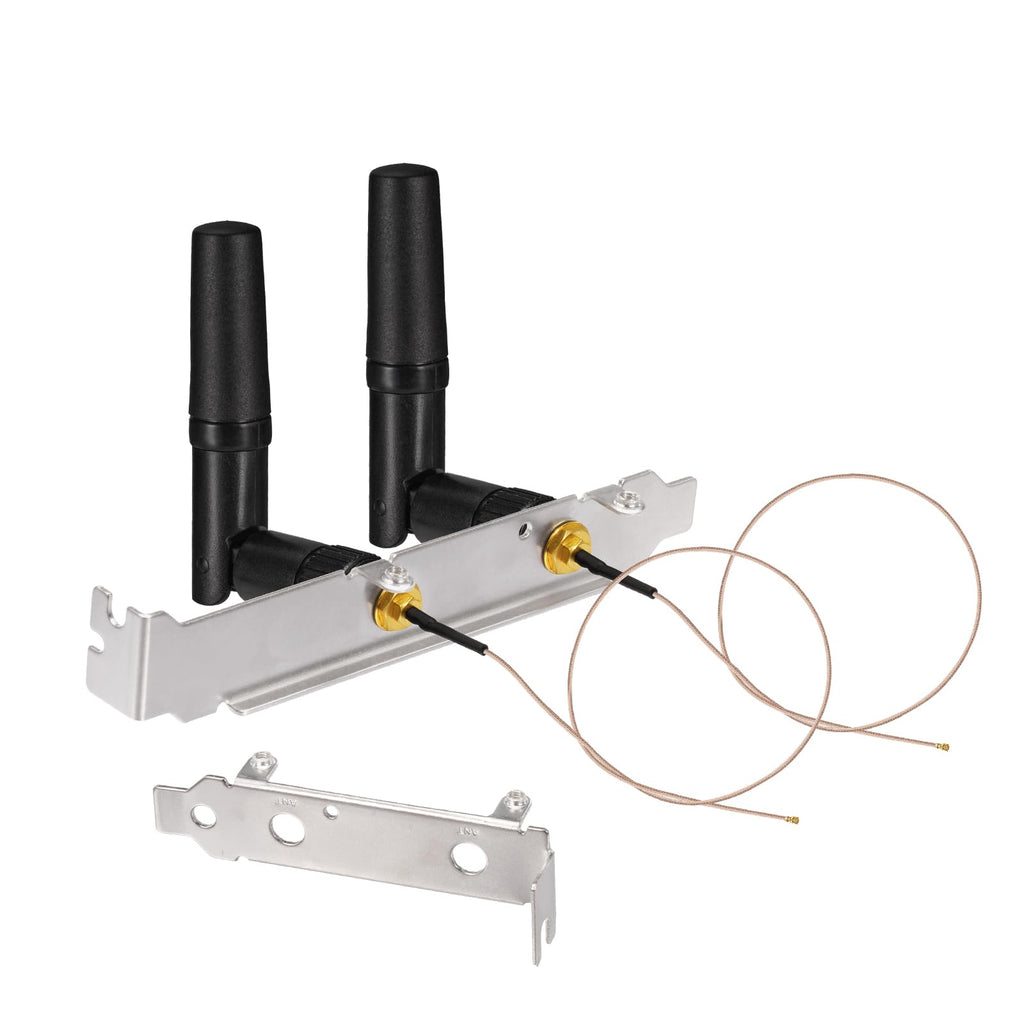

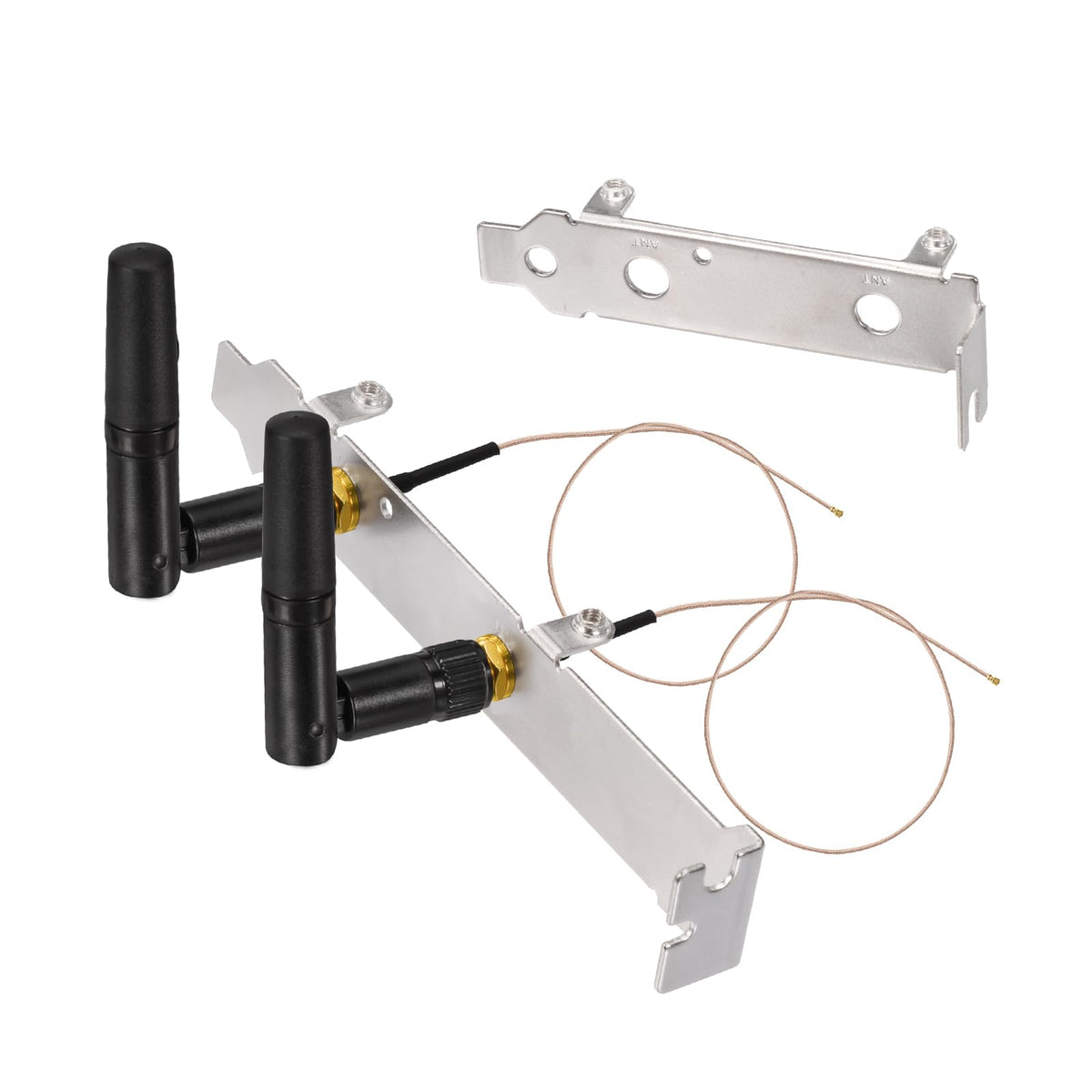

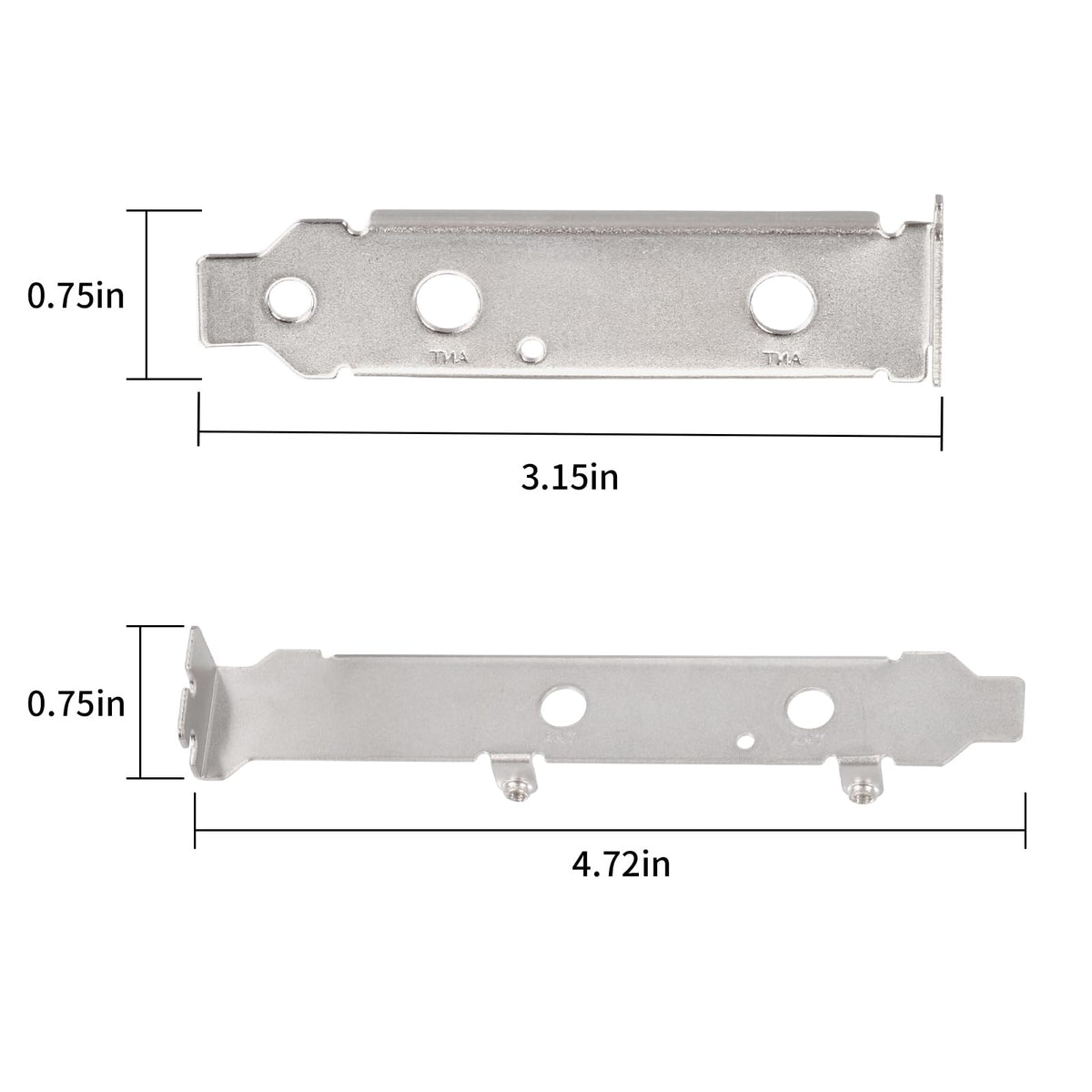

- Package Includes: 2pcs 2.4GHz and 5GHz WiFi antennas, 2pcs RP-SMA RG178 cable leads 20cm/8in, and 2pcs computer back slot cover brackets
--------------------------------------------------
Specification
Frequency:2.4Ghz 5.8GHz
VSWR<1.8
Gain:2.15 dBi
Polarization:Vertical
Impedance:50 Ohm
Direction: Omnidirectional

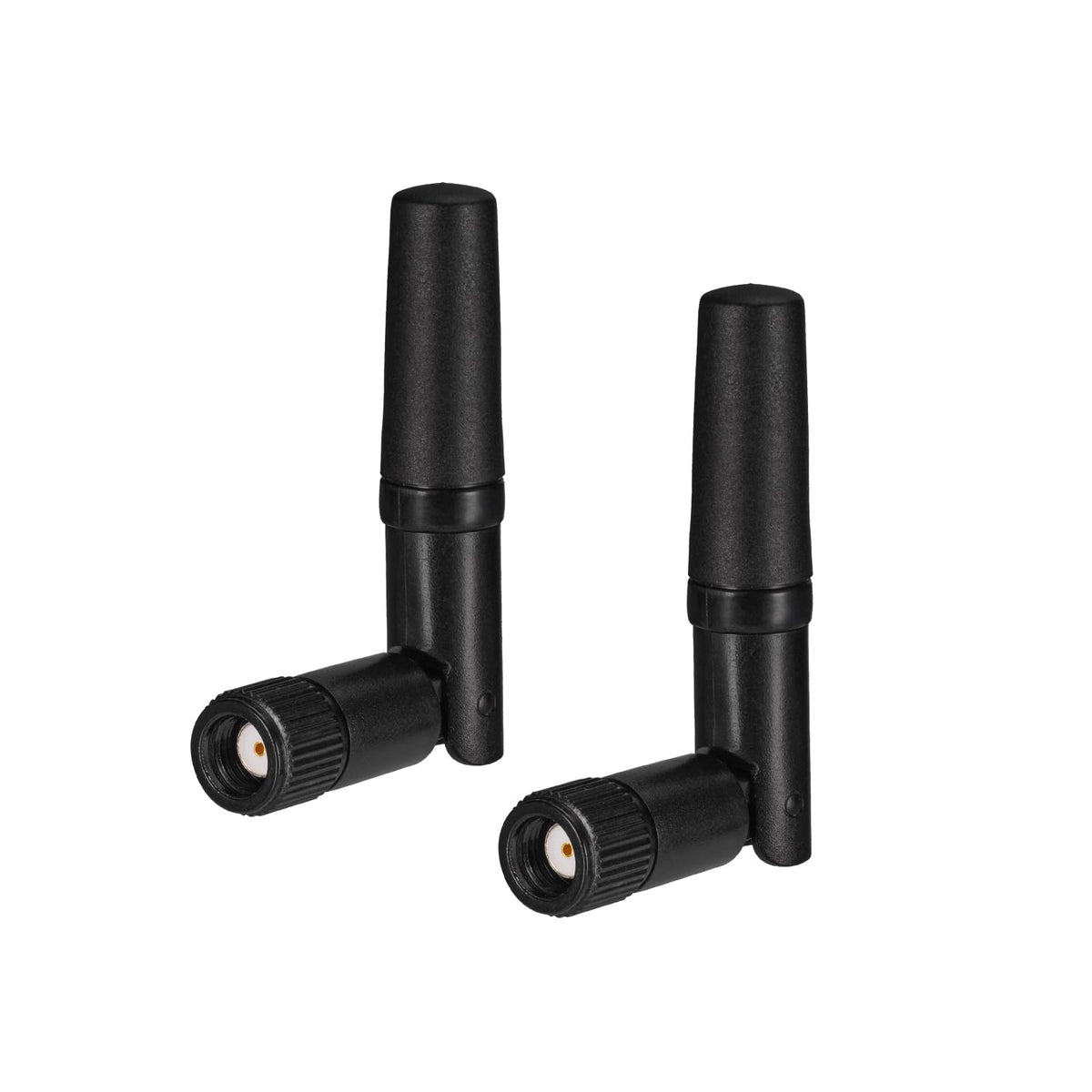

Antenna Connector: RP-SMA Male ( NO Male Pin)

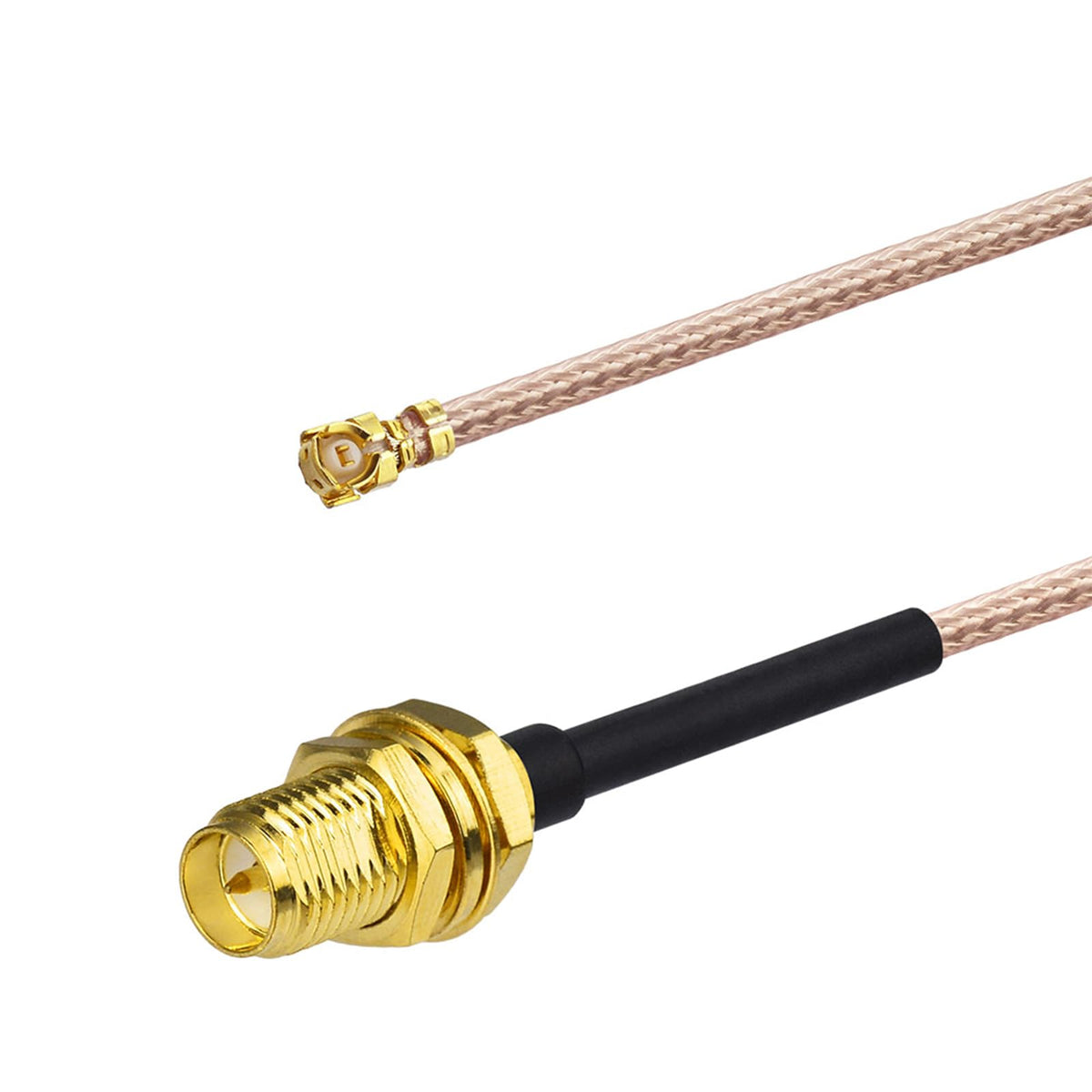

Pigtail Cable Connector: Mini PCIe to RP-SMA female

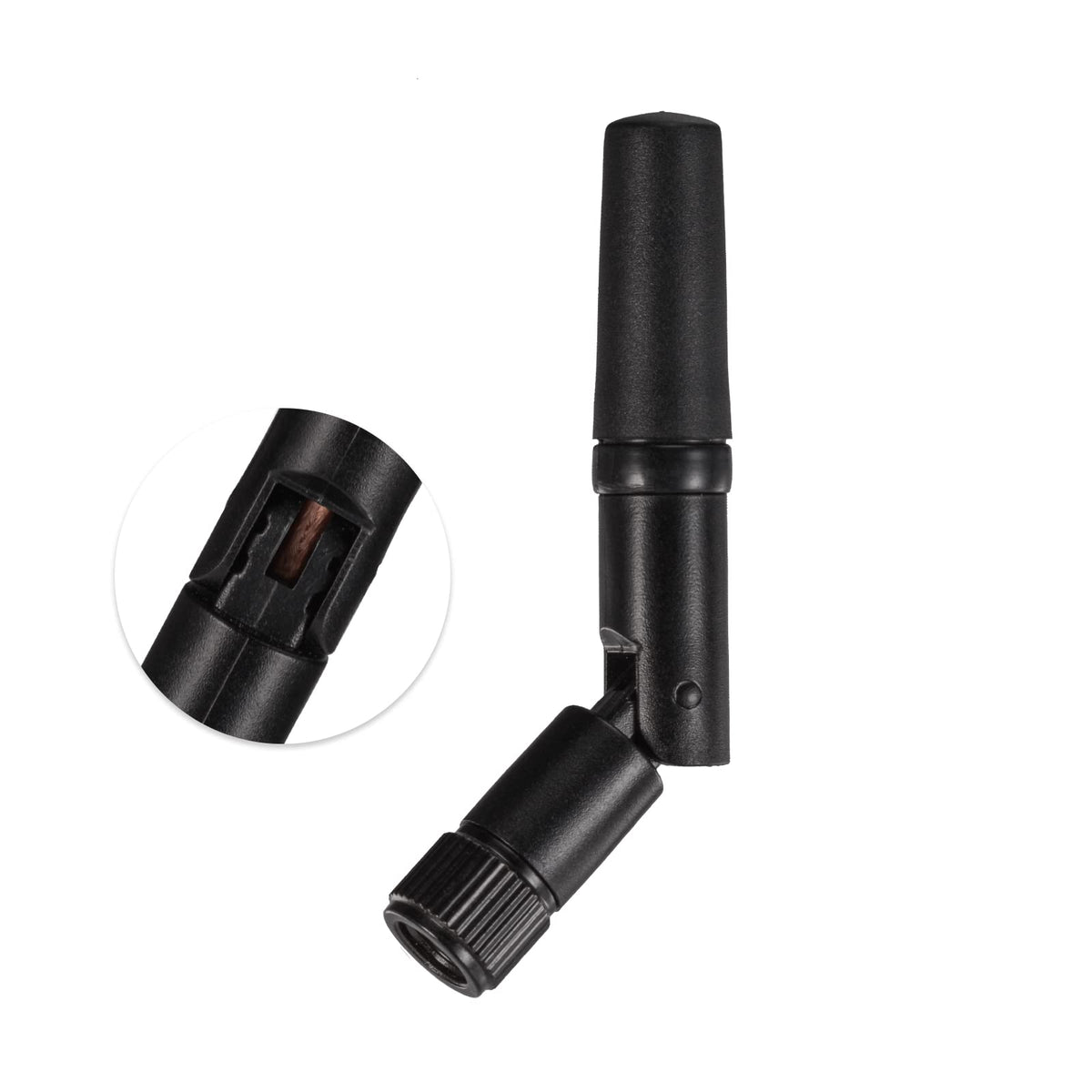

Antenna height: 47mm / 1.85 inch ( rotated by 90 degree); 67mm /2.6 inch (straight)
Maximum input Power:50W
Features
-Perform well with both 2.4Ghz and 5Ghz.
-Suited for 802.11a/b/g/n, 802.11ac, 802.11ax, wireless LANs, Bluetooth.
-Assist to get reliable Wi-Fi& Bluetooth connection.
-Short WiFi antenna,only 1.9 inch in length, is clean and saves space compared with a wired antenna.
