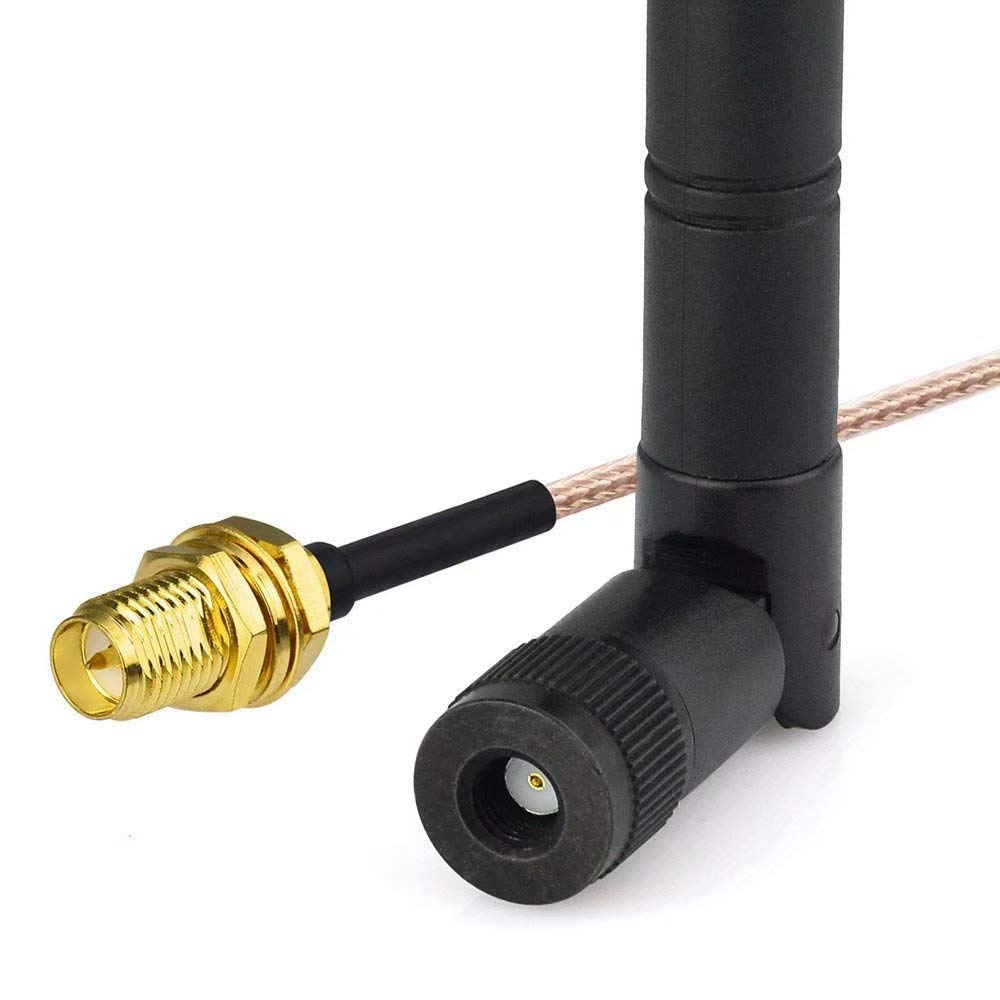

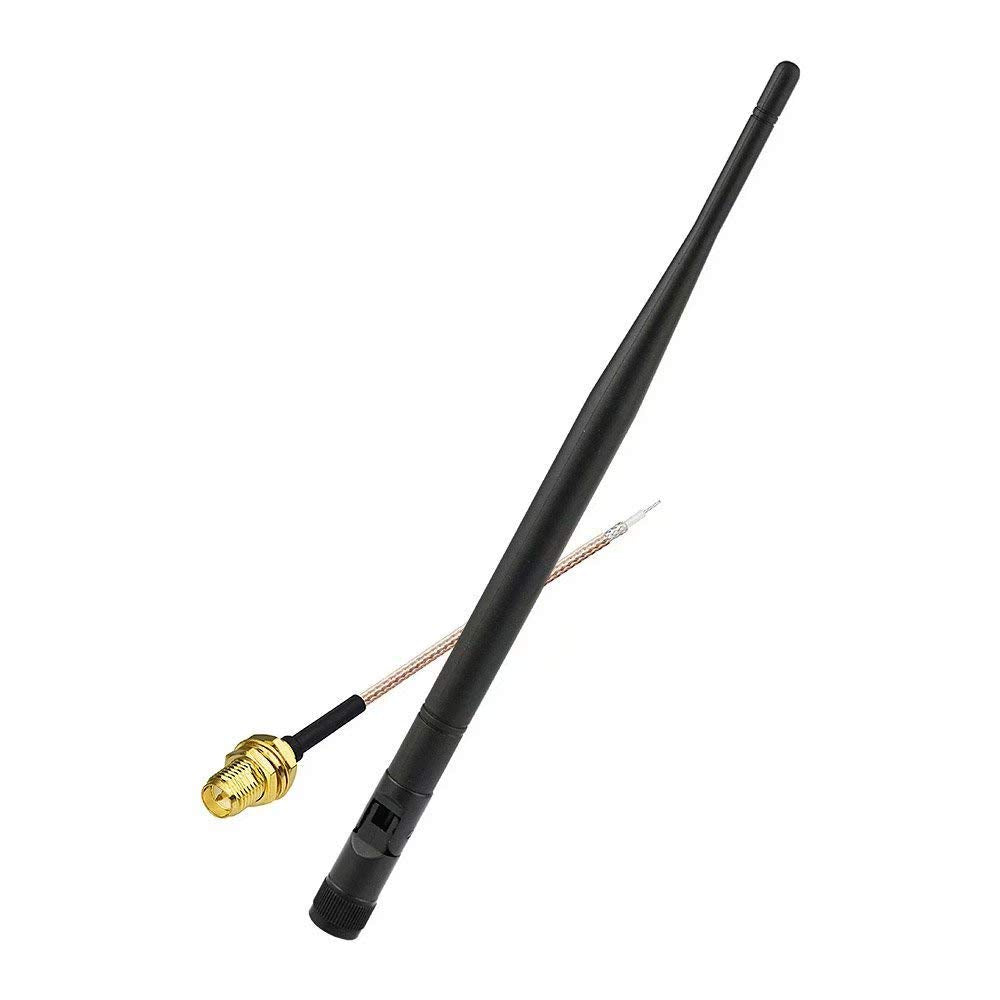

Eightwood 3.5dBi 900Mhz Omni GSM Antenna RP-SMA Male Connector + RP-SMA Female Bulkhead RG178 Pigtail Cable 15cm
ANTENNA
Features
-This compact GSM900 omnidirectional rubber-duck GSM antenna provides broad coverage and 3.5dBi gain.
-It is a coaxial sleeve design with an omni-directional pattern.
-It is also designed to transmit on the 900mhz frequencies with a top end transmission not to exceed 25 watts.Works for the current digital MOBIL systems.
-a tilt-and-swivel rp-SMA male connector design allows them to be used vertically,at a right angle, or any angle in-between.
Specifications
Frequency:824-960MHz
VSWR <=1.5
Gain:3.5dBi
Polarization:Vertical
Directionality:omnidirectional
Horizontal Beam Width:360o
vertical panel Beam Width:90o
Power:50W
Input Impedance:50 ohm
Bandwidth:64MHz
Connector:RP-SMA Plug(female pin)
Color:Black
Diameter:12mm
Length:243mm
Weight:25g
PIGTAIL CABLE
Specification
Connector Impedance:50 Ohm
Connector1:RP-SMA female bulkhead with male pin --brass material, gold plated
Connector2: none
Cable type:RG-178
Cable length:15cm
