- Antenna Frequency:1575.42MHz+-3 MHz; LNA Gain:28+-3db; DC Voltage: 3V to 5V; Polarization RHCP; Impendence:50 ohms

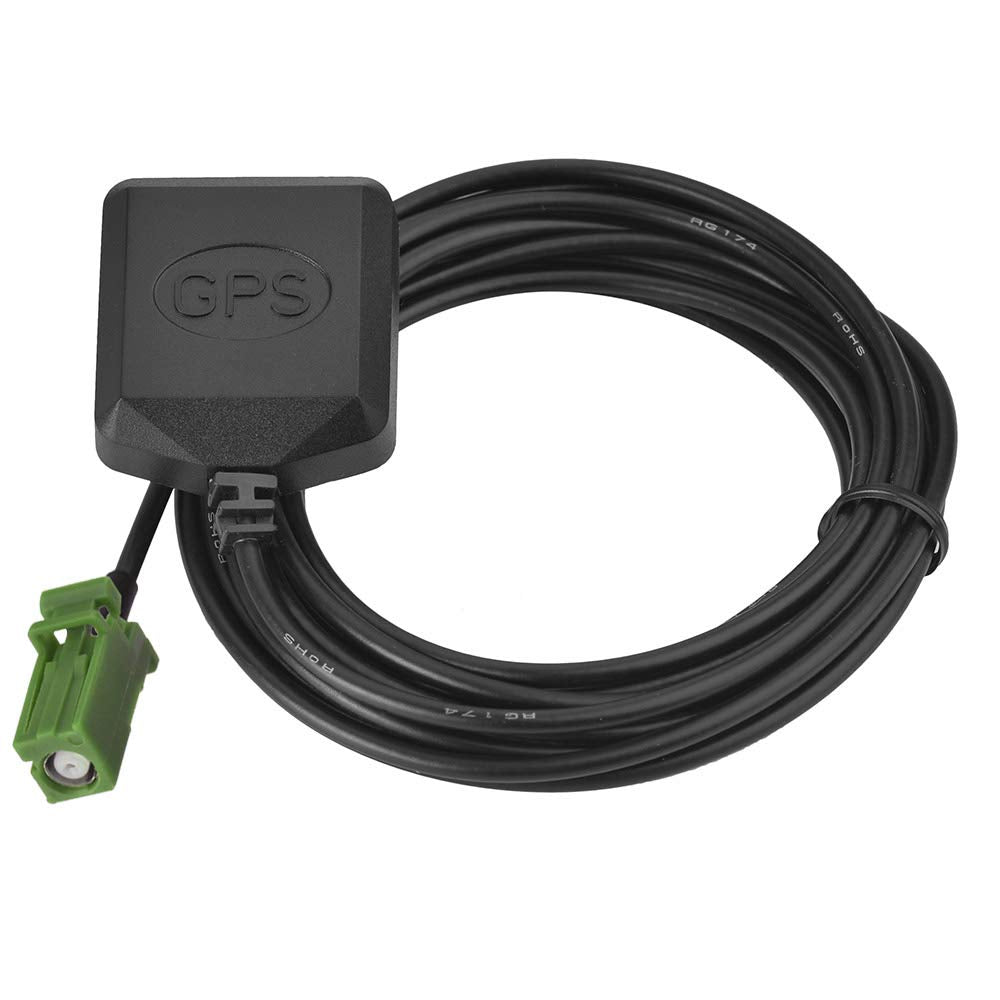

- Antenna Connector:AVIC green connector,Extension Cable :3 meter/ 9.8 feet, Coax RG174; Package Includes: 1pc Pioneer AVIC GPS antenna
- Compatible with Pioneer AVIC F7010BT,F900BT,F90BT,F700BT,X910BT,X710BT,Z110BT, Z120BT, Z130BT, X7115BT, F310, F70, X920, X930, X9110, X510; 5000NEX, 5100NEX, 5200NEX, 6000NEX, 6100NEX, 6200NEX, 6201NEX, 7000NEX, 7100NEX, 7201NE, 8000NEX, 8100NEX, 8200NEX, 8201NEX
- Compatible with Pioneer AVIC EVO1-DT2-C-GR,EVO1-DT2-C-OE,EVO1-G72-BBF,EVO1-G72-DMD,EVO1-G72-QYI,EVO1-OC2-MTB, EVO1-PL2-VAL,F88DAB,F980BT,F980DAB,Z610BT,Z620BT,Z710DAB,Z720DAB,Z810DAB,Z820DAB,Z910DAB,Z920DAB
- Features: Strong magnetic base mounting,Compact construction/ Low profile, Fully waterproof, Excellent temperature stability, Low noise figure
--------------------------------------------------
Product description
Dieletric Antenna
Center Frequency:1575.42MHz+-3MHz
V.S.W.R<1.5:1
Band Width:+-5 MHz
Impendence:50 ohm
Peak Gain >3dBic Based on 7x7cm ground plane
Gain Coverage >-4dBic at -90<0<+90 celsius degree (over 75% Volume)
Polarization:RHCP
LNA/Filter
LNA Gain (Without cable):28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f0 =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Current 5mA /11mA/15mA Max
Mechanical

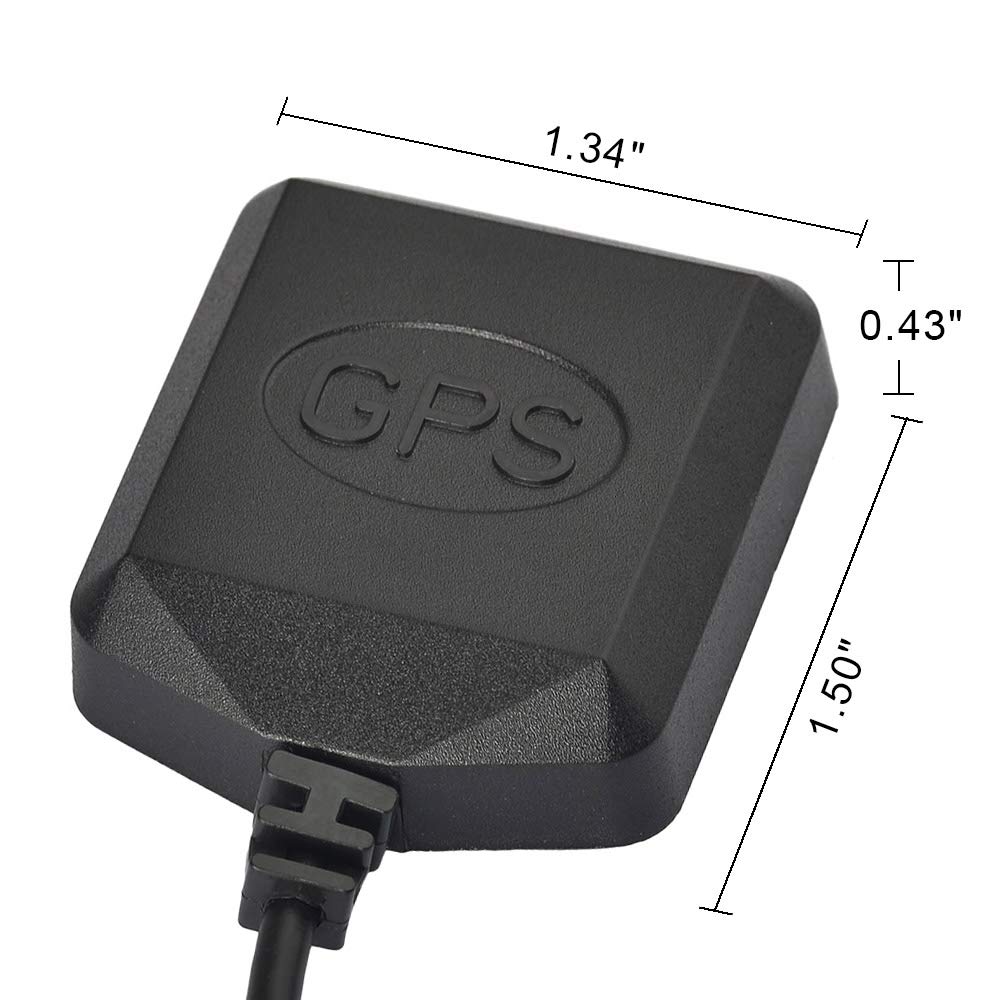

Size:1.50"x1.34"x0.43"/3.8cm x3.4cm x1.1cm
Extension Cable:RG174 3 meter/9.8 feet

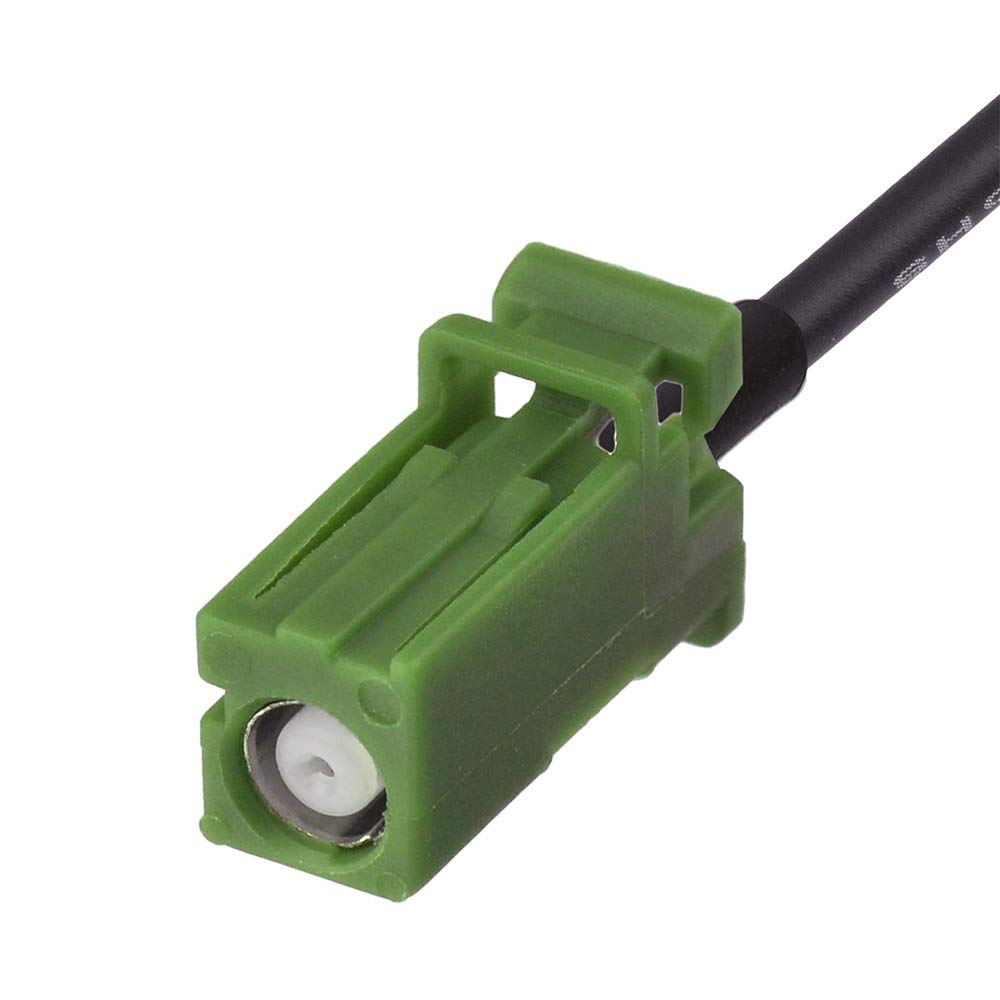

Connector: AVIC green

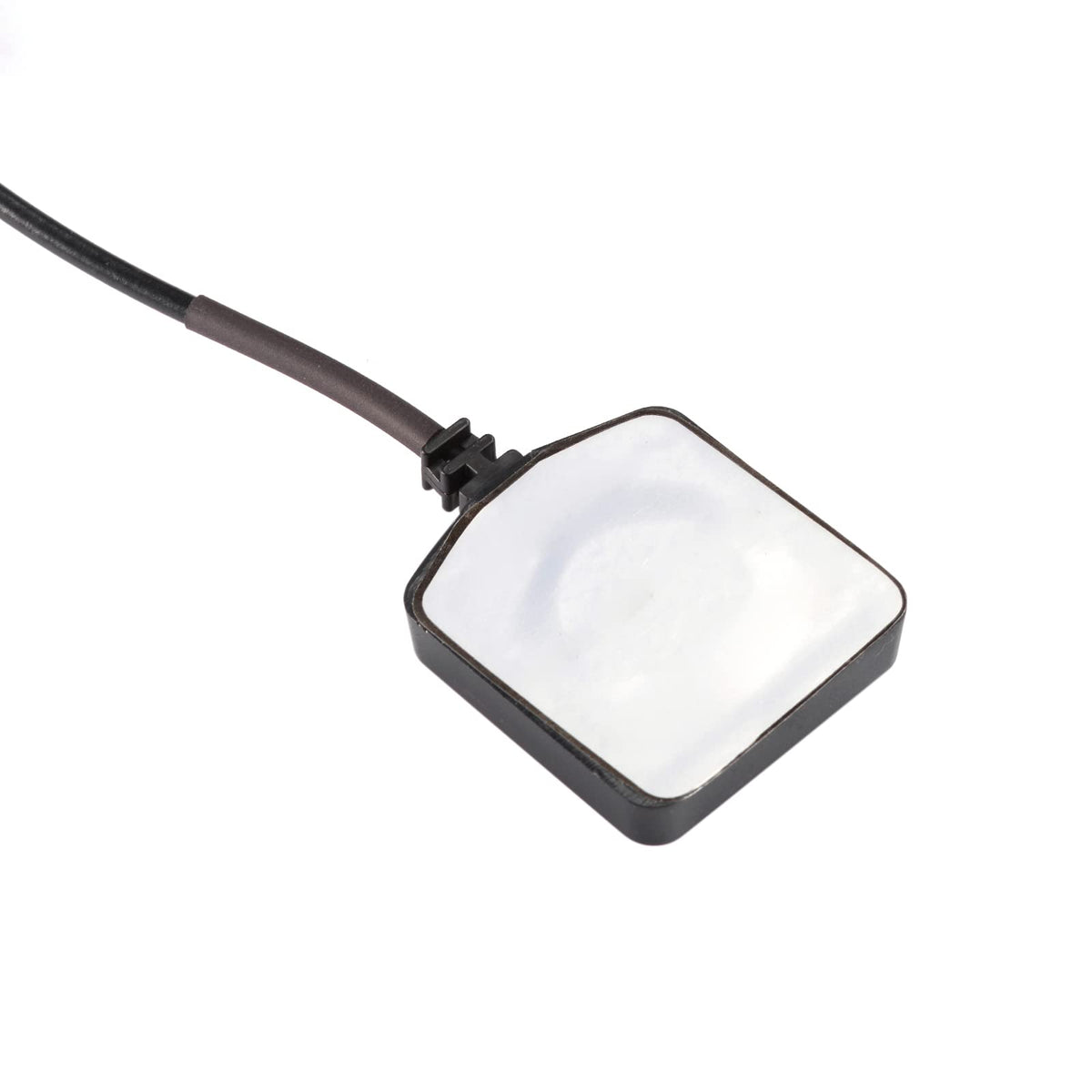

Mounting:Magnetic base
Housing:Black
Environmental
Working Temp:-40 to +85℃
Storage Temp:-45 to +100 ℃
Vibration Sine sweep 1g(0-p)10-50-10Hz each axis
Relative Humidity:95% non-condensing
Weatherproof:100% Waterproof
