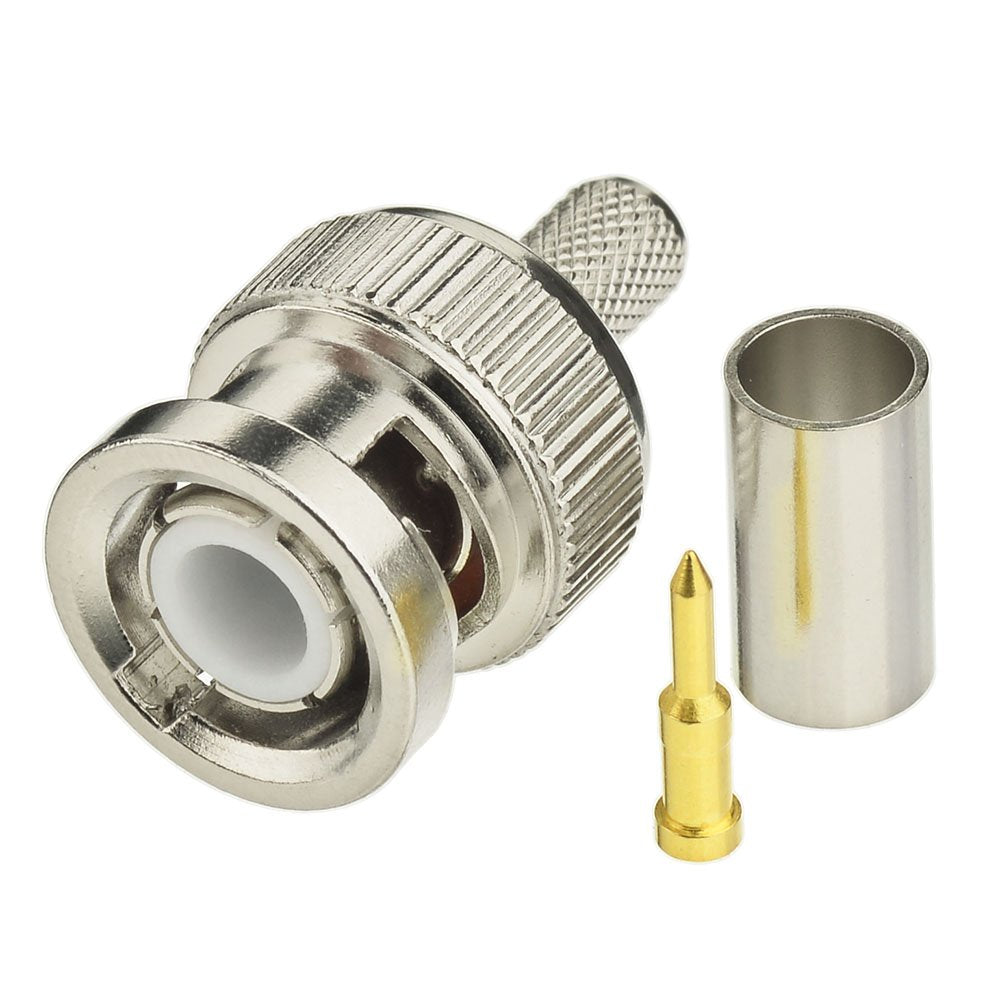

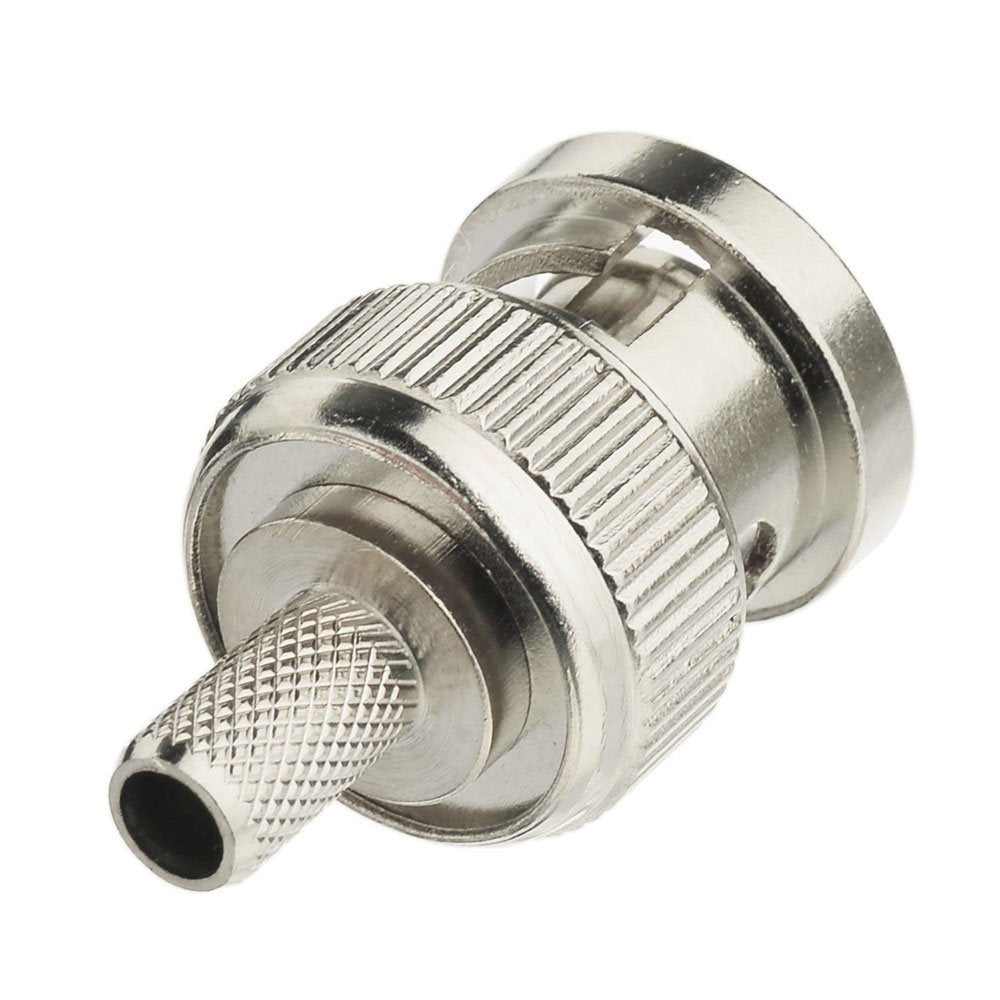

- Cable mount BNC male crimp connector; Impedance:50 Ohms
- Connectors are made of brass (not alloy) for mechanical durability and solid connection

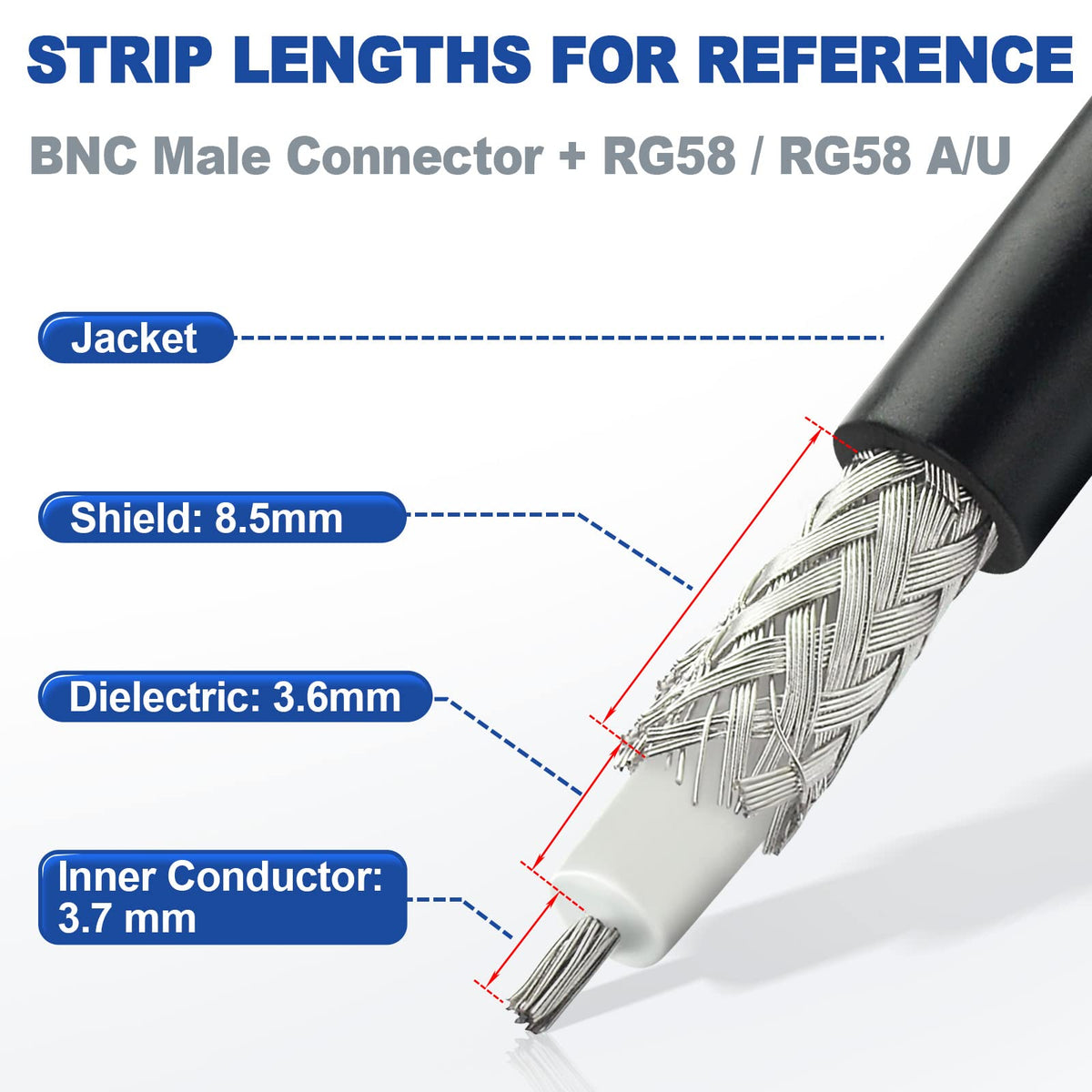

- Works with coaxial cable: RG58,RG142,LMR195
- Suitable to make cable assembly for 50 ohm RF applications including antennas,VHF UHF CB amateur radios, radio scanners, security camera, oscilloscope spectrum analyzer,cable tester,wireless sensor,etc

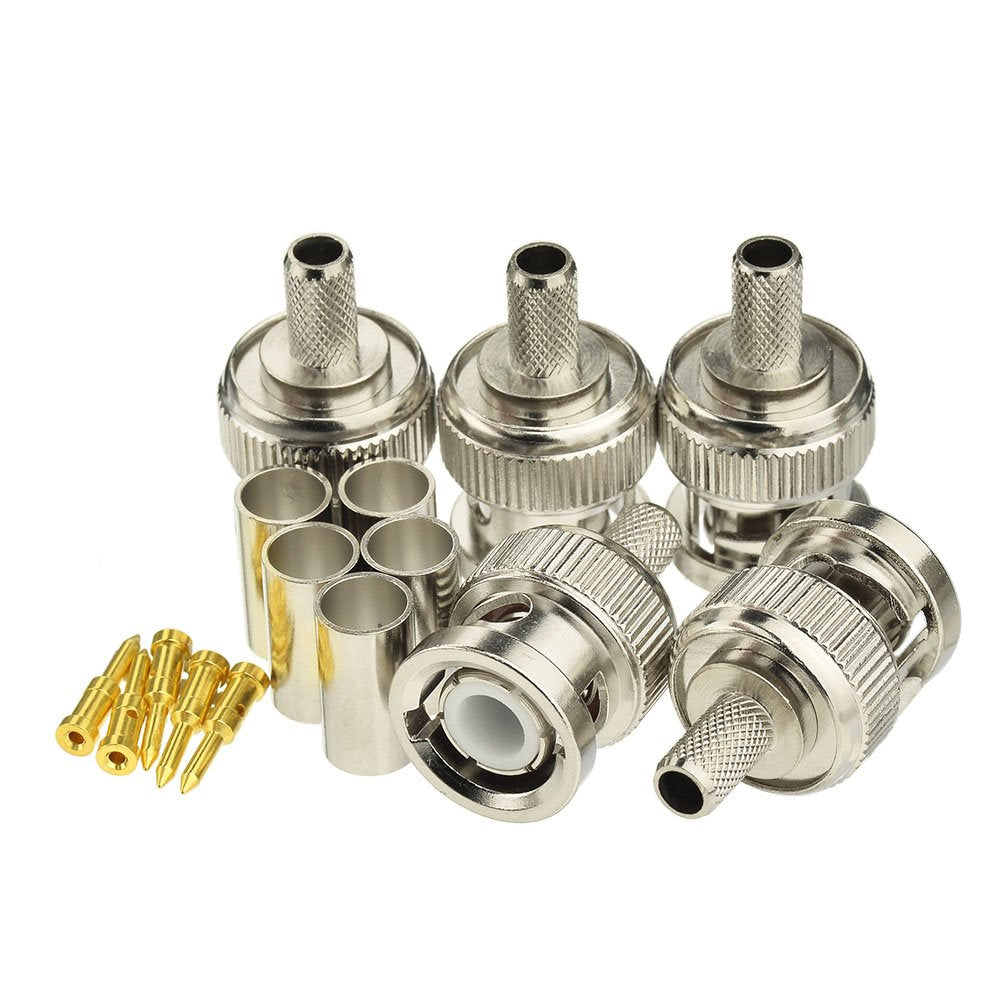

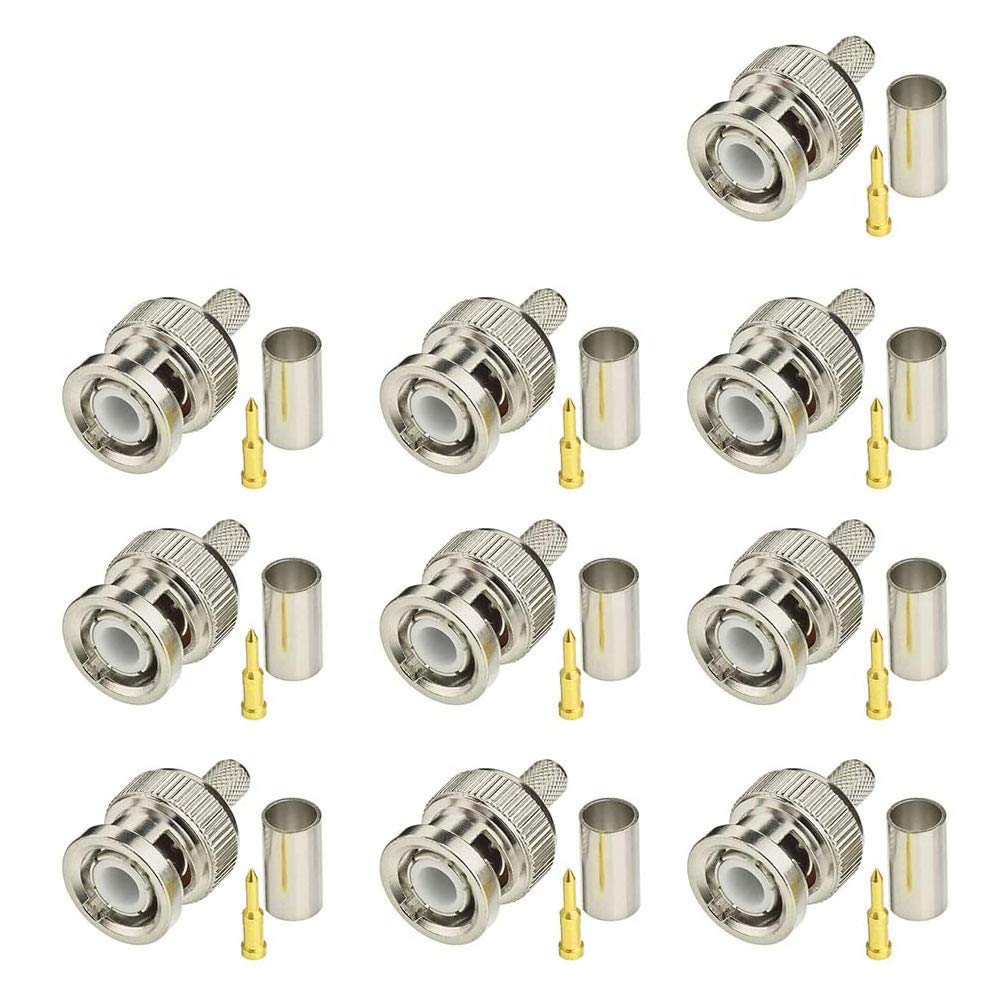

- Package Content: 10pcs RG58 BNC male connectors + 10pcs heat shrink tubes
--------------------------------------------------
Product description
BNC Male Connector for RG58 RG142 LMR195
The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
Application:
Antennas, Computers/LANs, Cable Modems, Telecom,Automotive,Medical Equipment,Satcom, Instrumentation, Base Stations.
Package Includes

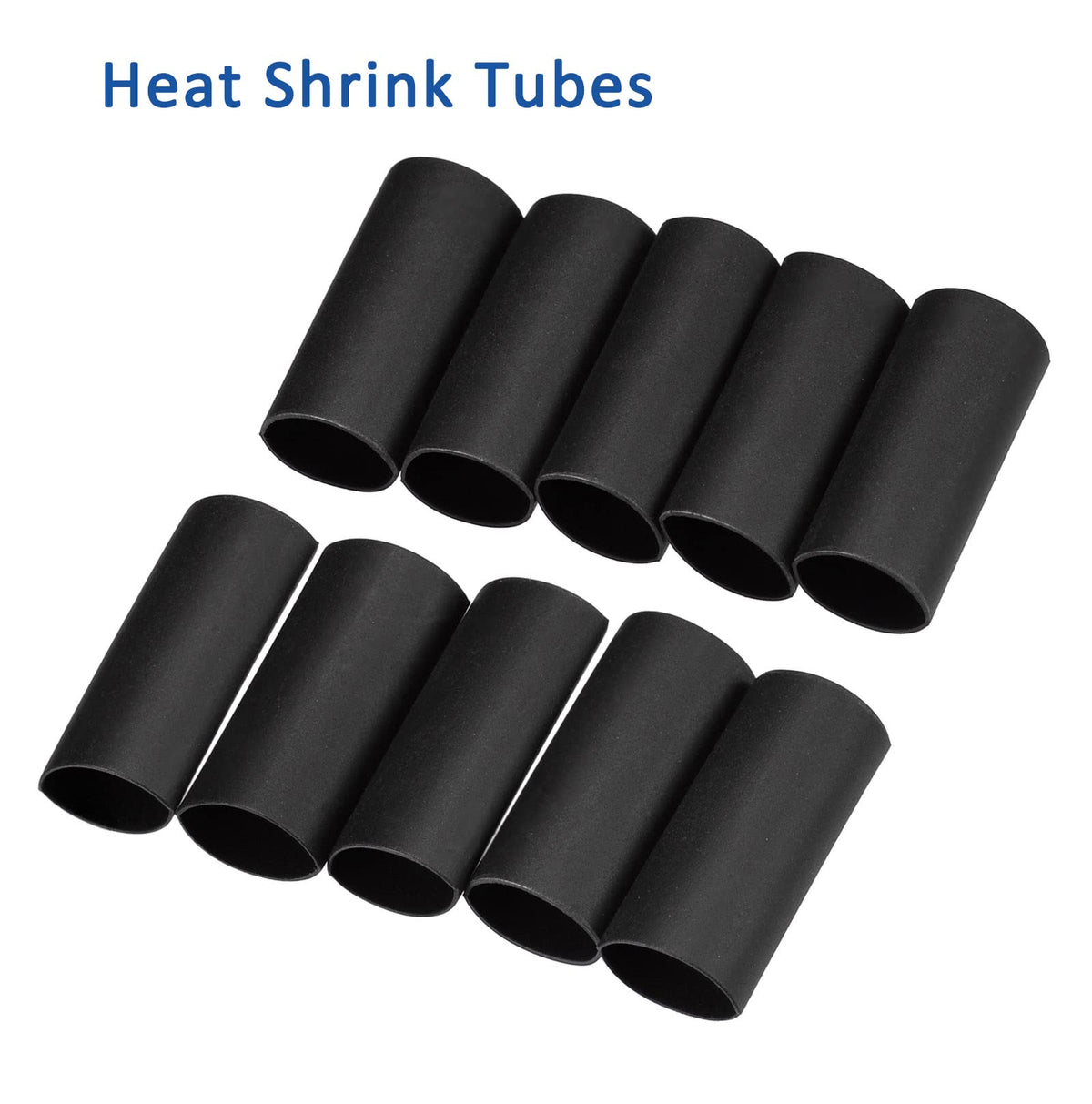

10pcs BNC male connectors+ heat shrink tubes
Specification
Impedance:50 Ohm
Body Material:Brass
Dielectric:PTFE
Body Plated:Nickel
Contact Plated:Nickel
Body Termination:Crimp
Contact Termination:Solder
Frequency Range:0GHz - 3GHz
--------------------------------------------------
Product description
BNC Male Connector for RG58 RG142 LMR195
The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
Application:
Antennas, Computers/LANs, Cable Modems, Telecom,Automotive,Medical Equipment,Satcom, Instrumentation, Base Stations.
Package Includes
10pcs BNC male connectors+ heat shrink tubes
Specification
Impedance:50 Ohm
Body Material:Brass
Dielectric:PTFE
Body Plated:Nickel
Contact Plated:Nickel
Body Termination:Crimp
Contact Termination:Solder
Frequency Range:0GHz - 3GHz
