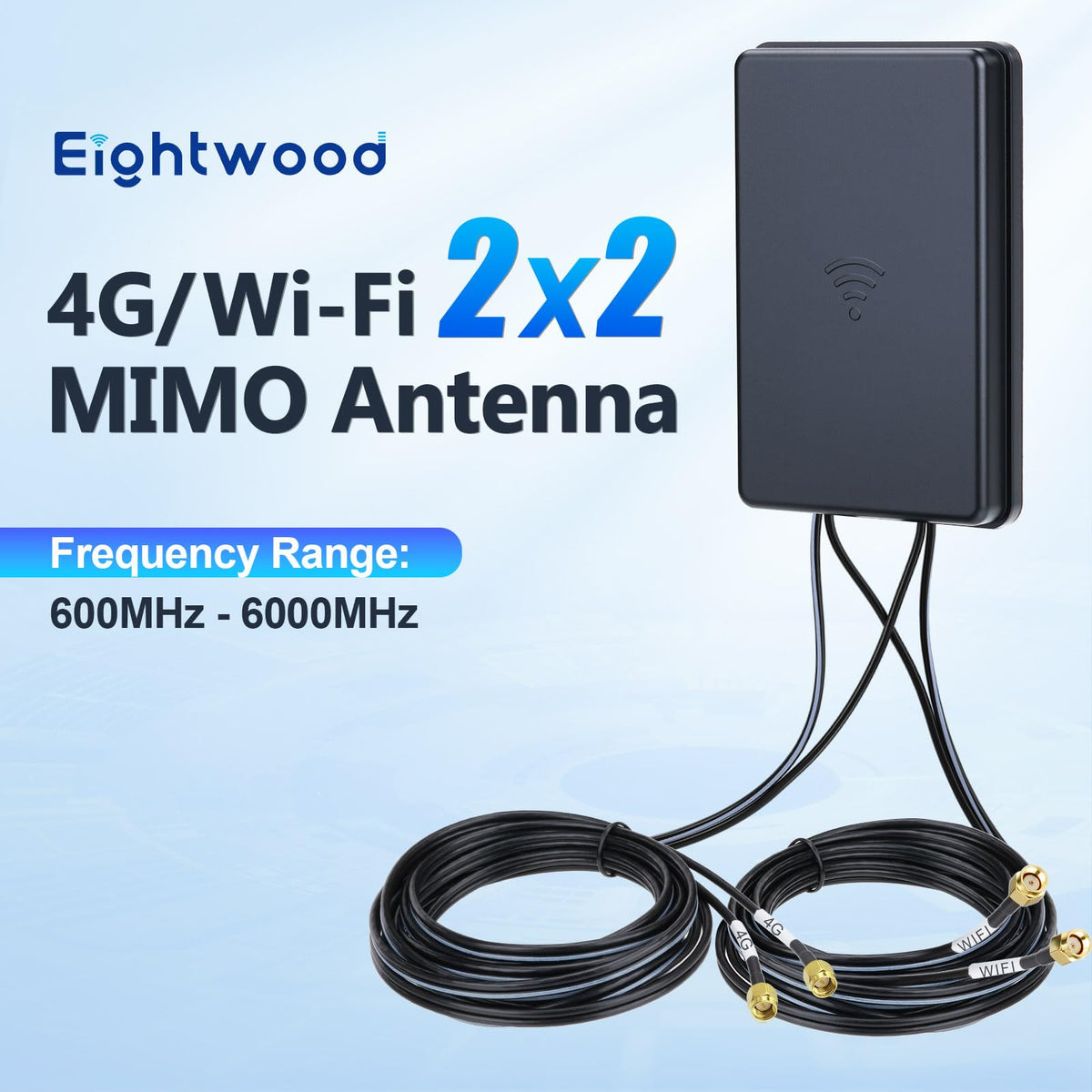

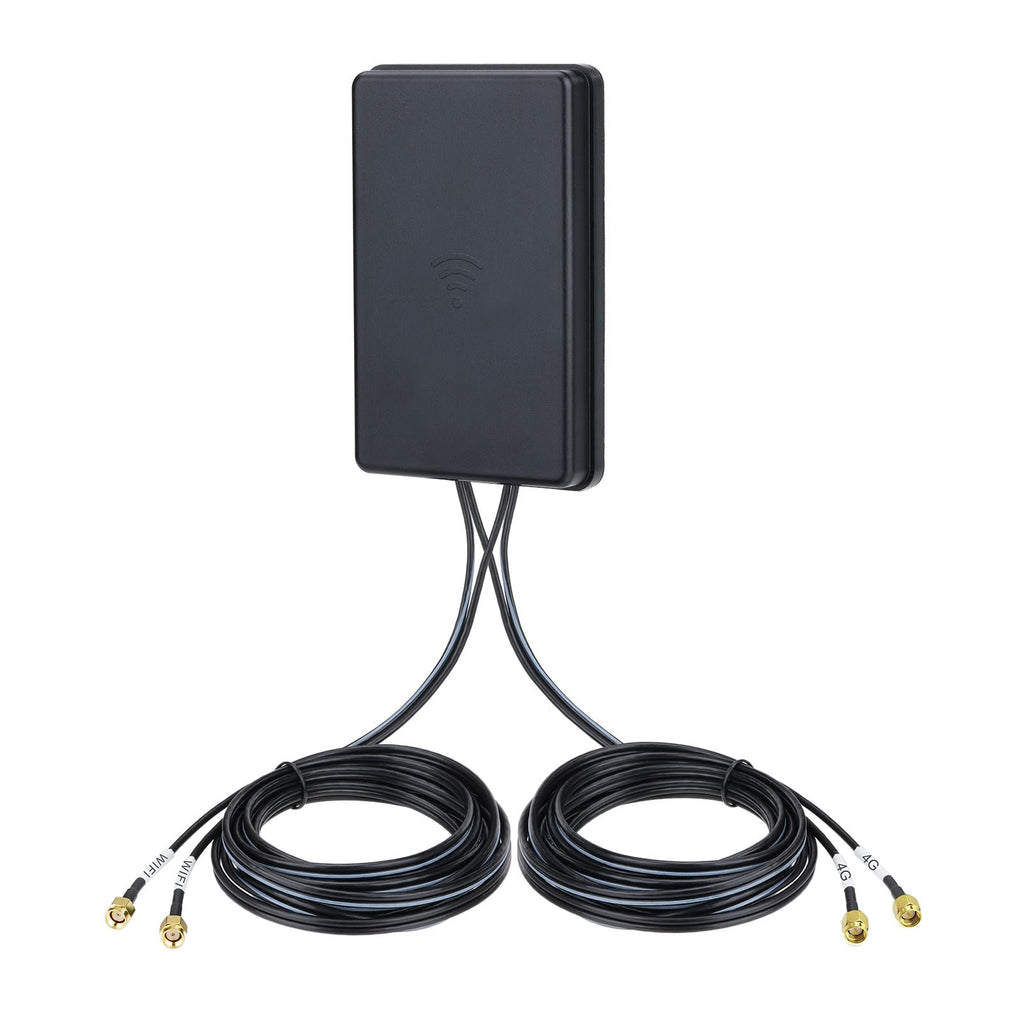

- Dual-Function Antenna: Combines 4G LTE and WiFi 6E/Bluetooth/Zigbee in one compact design - suitable for industrial routers, CPE hotspots, and IoT gateways needing simultaneous cellular and wireless connectivity
- Wide Band Frequency Support: Covers 600MHz–6000MHz for 3G/4G LTE/5G and 2100–6000MHz for WiFi 6/ WiFi 6E

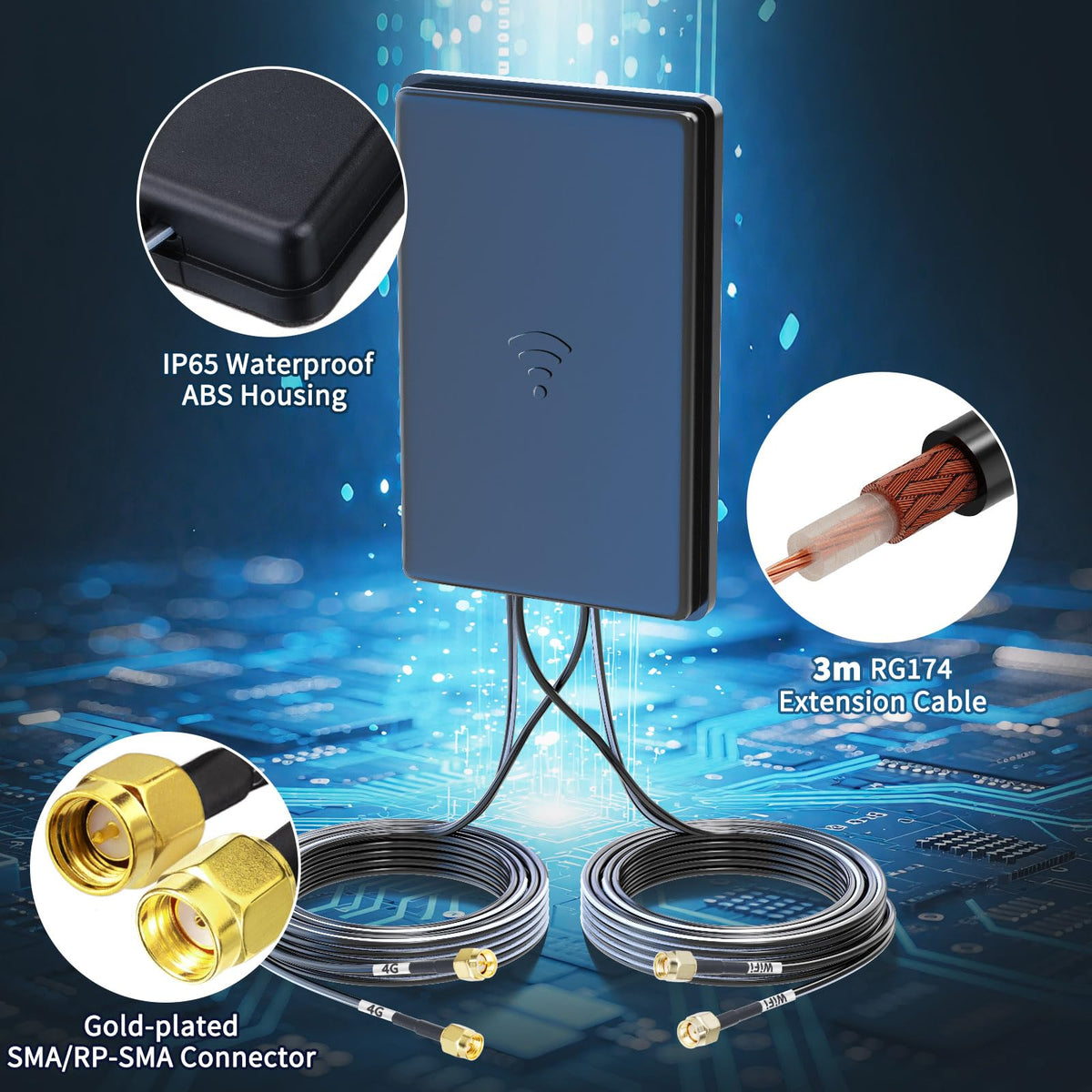

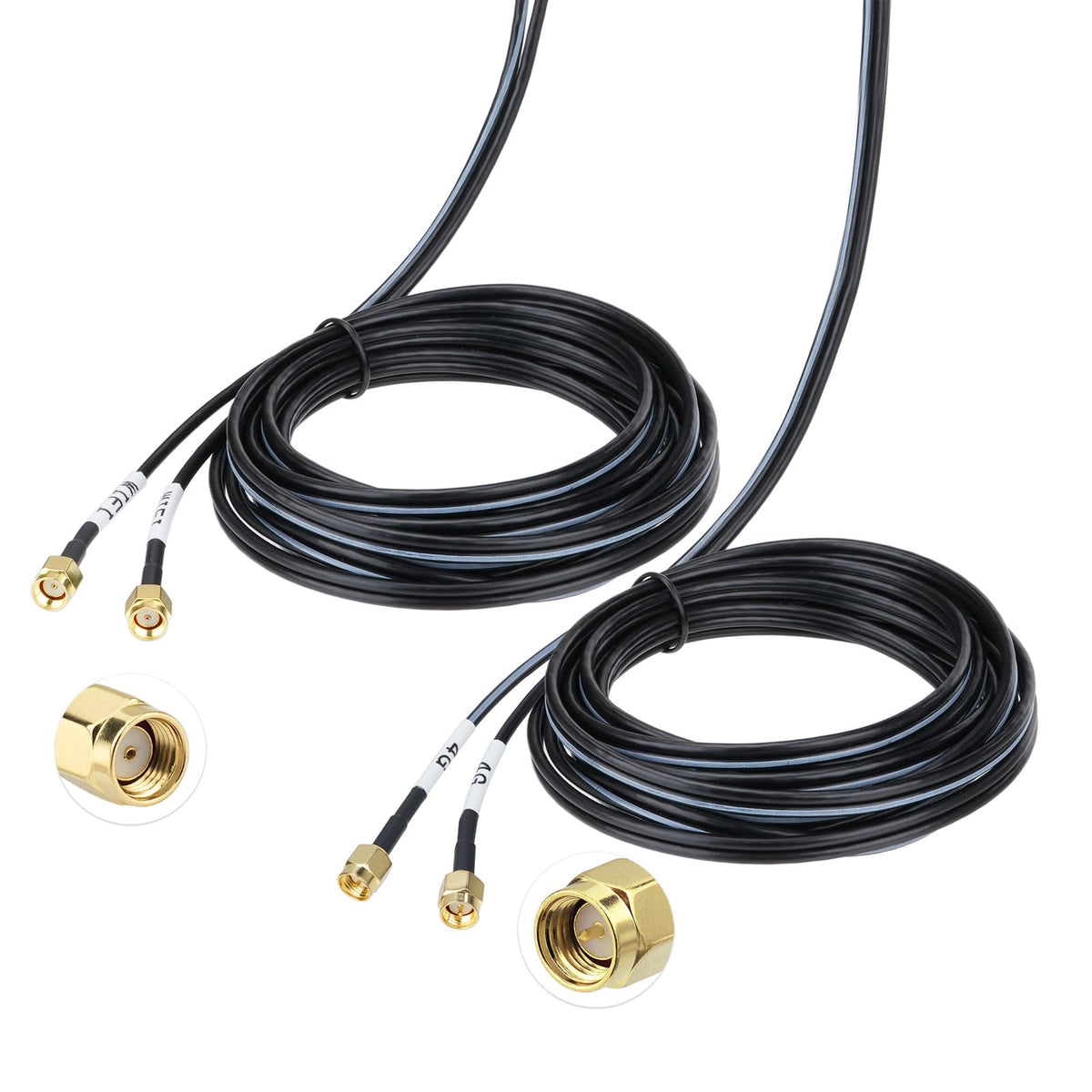

- Antenna Connectors: 2x SMA Male (has center pin) for 4G LTE + 2x RP-SMA Male (no center pin) for WiFi

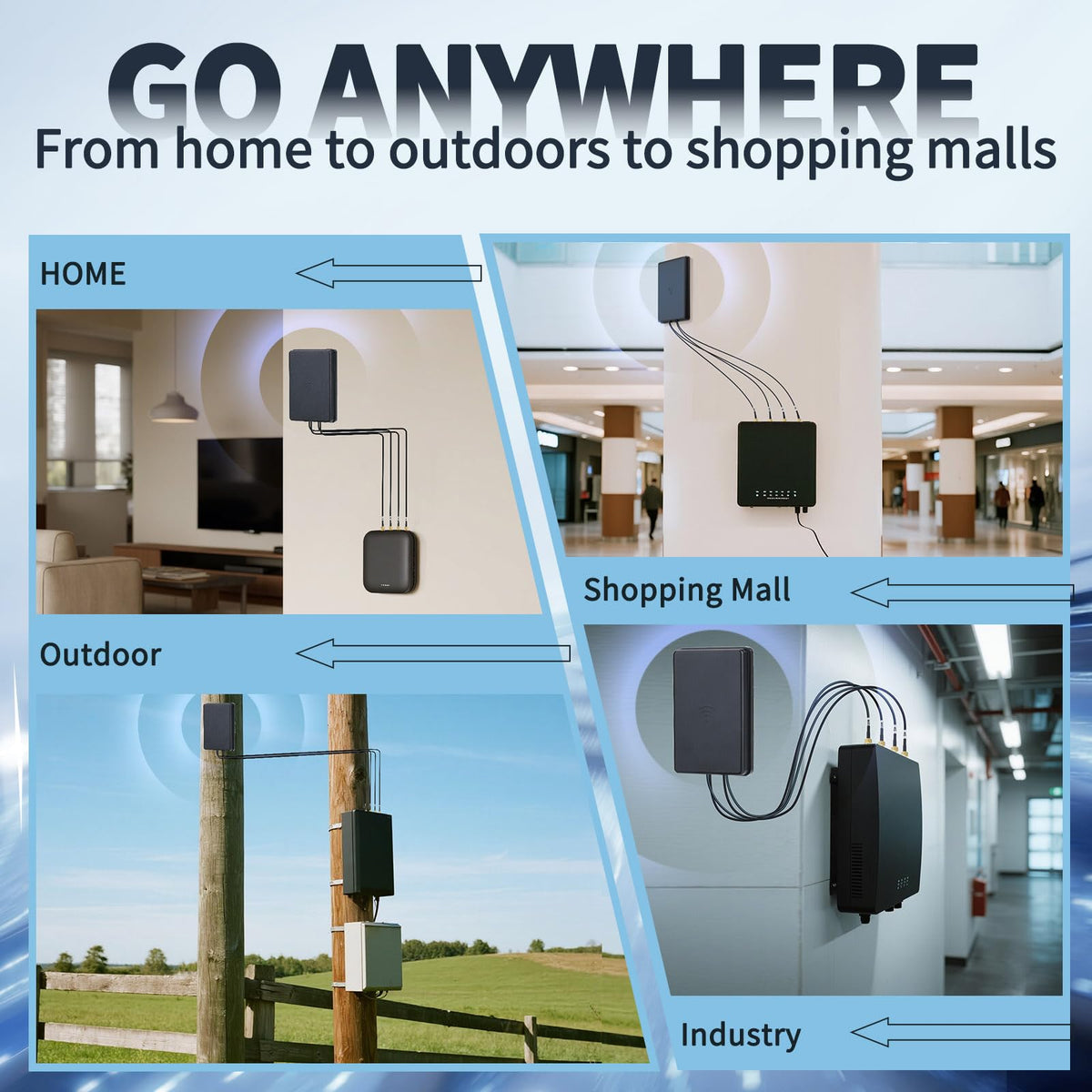

- Flexible Installation：The strong adhesive mount and 9.8ft (300cm) extension cables allow optimal placement for maximum signal strength
- Package Includes: 1pc 4G LTE + WiFi 2-in-1 Antenna
--------------------------------------------------
Specification
Cellular 4G LTE/3G
Frequency Range：600MHz-6000MHz
Polarization：Linear

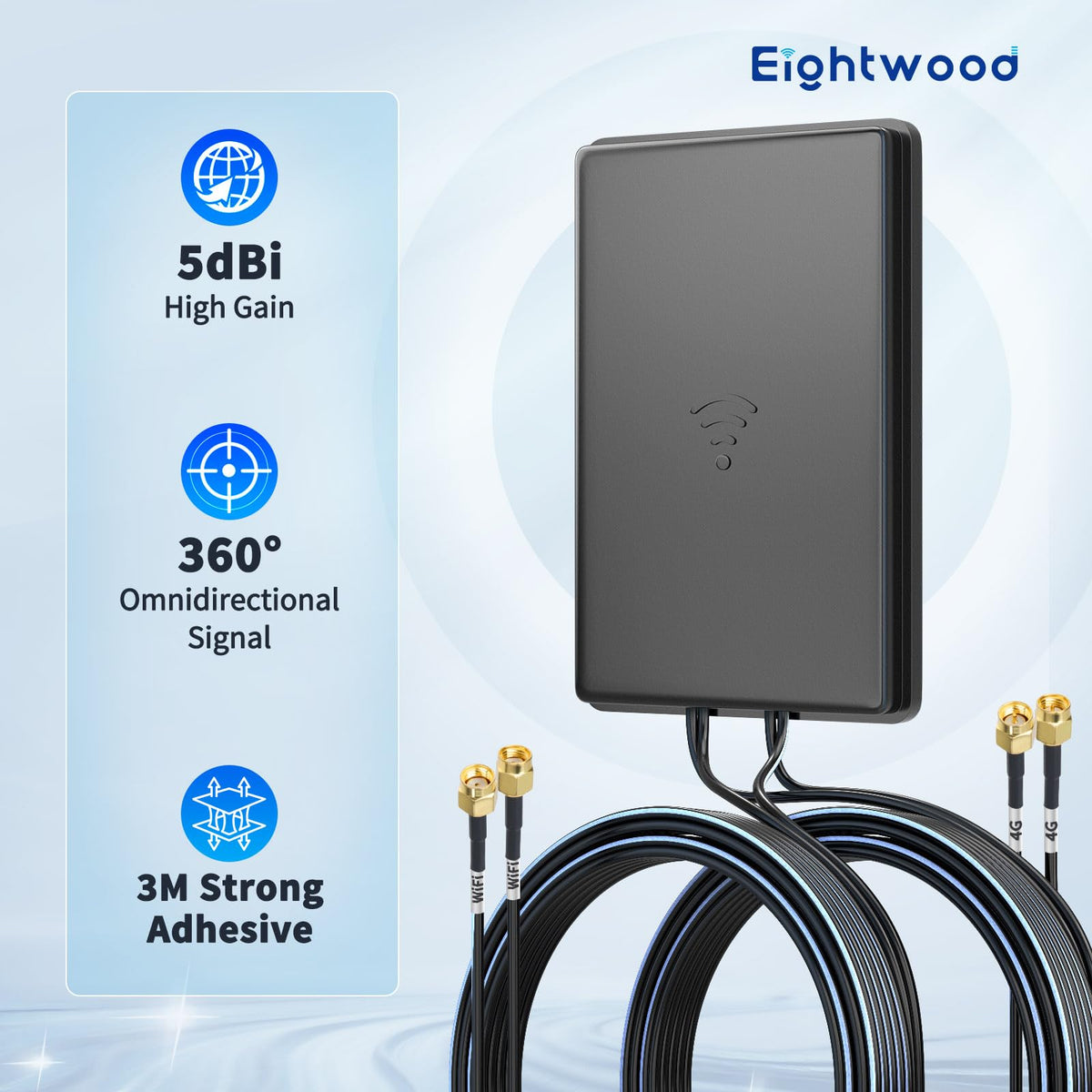

Gain: 3.0 dBi
Connector Type: SMA Male
Cable:300cm/9.8ft RG174
V.S.W.R：average 3.0
Efficiency：>50%
WiFi 6E/Bluetooth/Zigbee
Frequency Range：2100-6000MHz
Polarization：Linear
Gain: 3.0 dBi
Connector Type: RP-SMA Male
Cable:300cm/9.8ft RG174
V.S.W.R：average 3.0
Efficiency：>50%
Mechanical

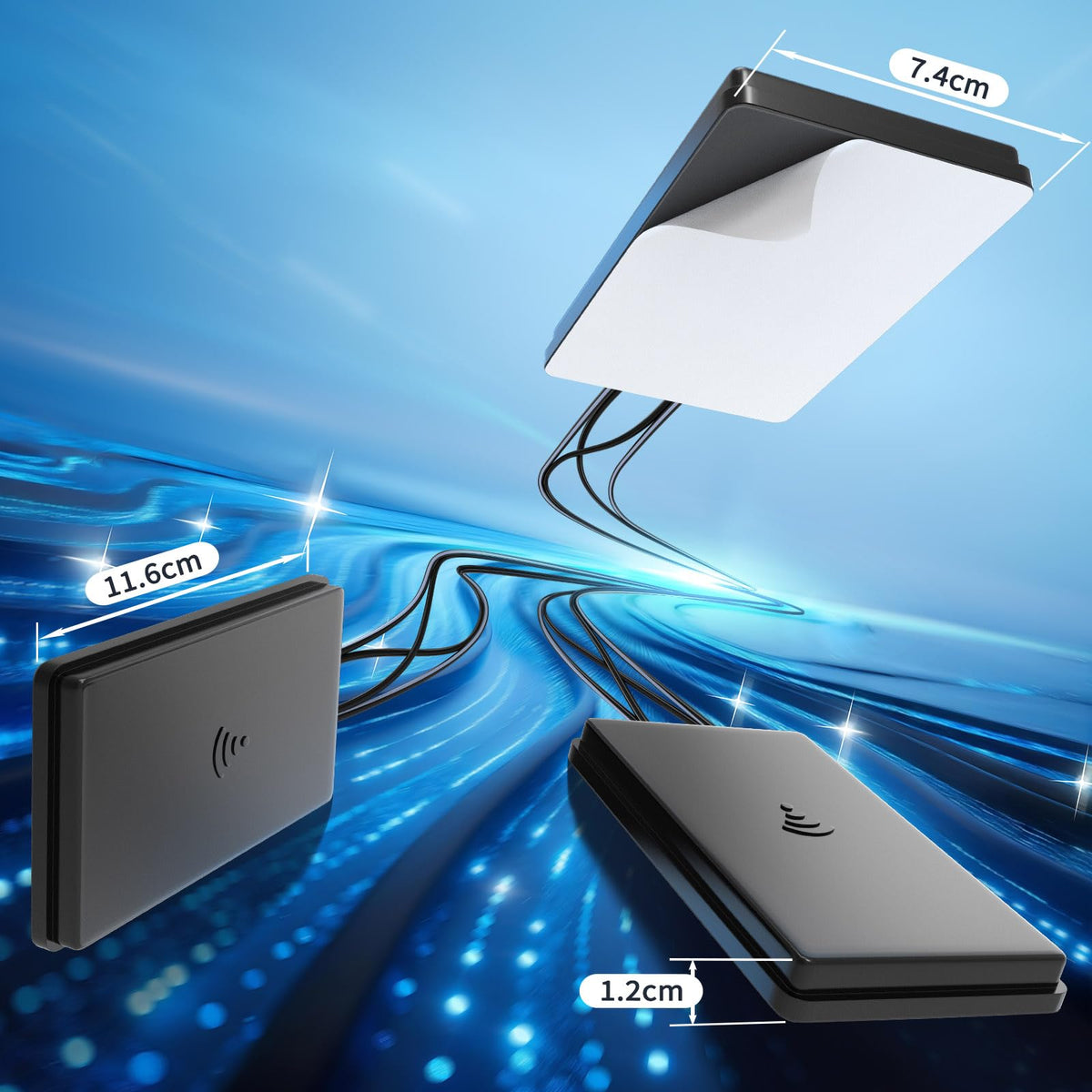

Dimension:116mm*74mm*12mm
Operating Temperature:-40°C-+85°C
Relative Humidity:Up to 95%
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
Ingress Protection:IP65
